SK-B6P 系列 无碳刷AC交流电压全自动大扭力下压式起子系列
cONTACT
KILEWS INTELLIGENT TECHNOLOGY CO., LTD.
Address: No. 241/134, Moo 3, Bo Win, Si Racha, Chon Buri 20230, Thailand
Phone: 081-136-8391
E-mail: kilewsth@gmail.com 电话: 081-136-8391 微信: 13322901202 LINE: kilews
规格表
型号 | 电压 | 扭力(kgf.cm) | 扭力 (Lbf.in) | 扭力 (N.m) 硬结合 | 扭力 (N.m) 软结合 | 精度 (%) | 空转速 (r.p.m) | 适用螺丝直径(mm) 机械牙 | 适用螺丝直径(mm) 自攻牙 | 重量 (g) | 长度 (mm) | 适用起子头 |
SK-B6125L | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | ±3% | 1000 | 2.6~4.0 | 2.6~3.5 | 500 | 285 | A、B |
SK-B6125P | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | ±3% | 1000 | 2.6~4.0 | 2.6~3.5 | 500 | 285 | A、B |
SK-B6125LF | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | ±3% | 2000 | 2.6~4.0 | 2.6~3.5 | 500 | 285 | A、B |
SK-B6125PF | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | ±3% | 2000 | 2.6~4.0 | 2.6~3.5 | 500 | 285 | A、B |
SK-B6150L | AC:110~120V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | ±3% | 1000 | 4.0~5.0 | ≤4 | 500 | 285 | A、B |
SK-B6150P | AC:110~120V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | ±3% | 1000 | 4.0~5.0 | ≤4 | 500 | 285 | A、B |
SK-B6170L | AC:110~120V | 25~70 | 22~61.6 | 2.45~6.86 | 2.45~5.49 | ±3% | 700 | ≤6 | ≤4.5 | 500 | 285 | B |
SK-B6230L | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | ±3% | 1200 | 2.6~4.0 | 2.6~3.5 | 810 | 305 | A、B |
SK-B6230P | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | ±3% | 1200 | 2.6~4.0 | 2.6~3.5 | 810 | 305 | A、B |
SK-B6230LF | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | ±3% | 2000 | 2.6~4.0 | 2.6~3.5 | 810 | 305 | A、B |
SK-B6230PF | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | ±3% | 2000 | 2.6~4.0 | 2.6~3.5 | 810 | 305 | A、B |
SK-B6250L | AC:220~240V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | ±3% | 1200 | 4.0~5.0 | ≤4 | 810 | 305 | A、B |
SK-B6250P | AC:220~240V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | ±3% | 1200 | 4.0~5.0 | ≤4 | 810 | 305 | A、B |
※请左右滑动阅读表格
起子头型图示表

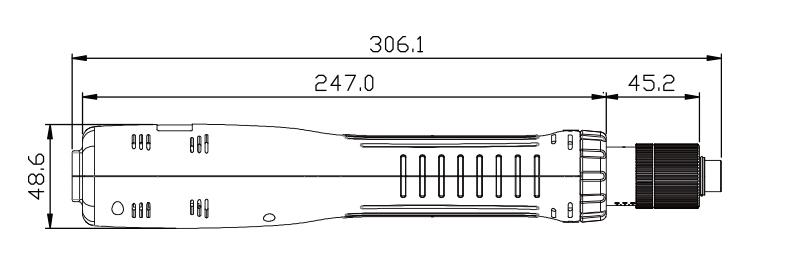

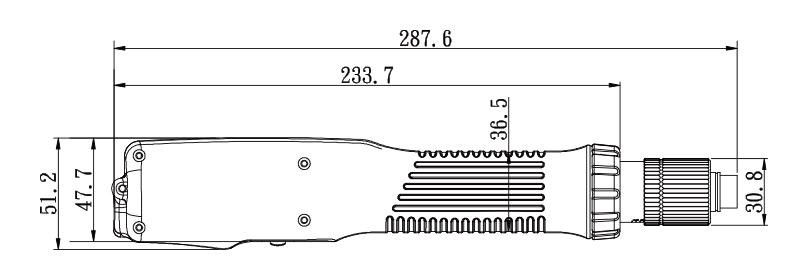

外部尺寸图
SK-B61P
SK-B62P

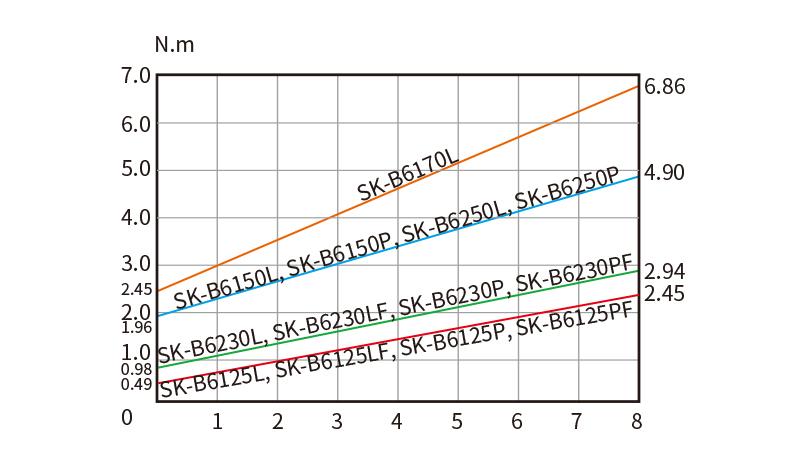

扭力曲线参考图
台湾总部列示之配件
KW-1扭力固定环板手
KC-7C(S)扭力固定环
KH-2L起子架
KL-1200弹簧吊车原厂下载资料

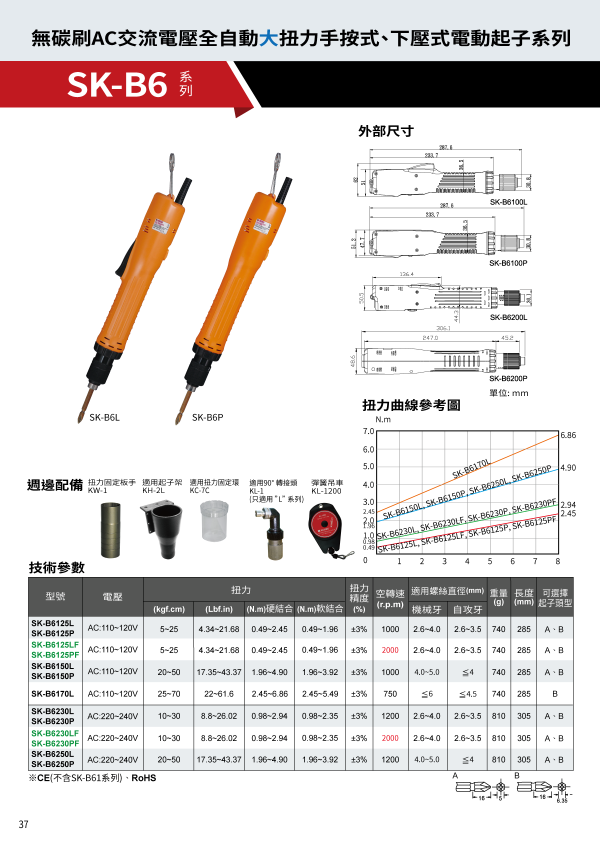

SK-B6系列目录PNG
SK-B61系列 操作手册PDF订购或安装前，请向泰国奇力速确认型号、相容性、手册版本及当地供货。 台湾总部产品页
