Please input complete information in the table below to obtain a detailed quotation。
型号 :
SK-B5112P
SK-B5112PF
SK-B5117PF
SK-B5122P
SK-B5212P
SK-B5212PF
SK-B5217PF
SK-B5222P
电压选型：SK-B51 系列为 AC 110–120V；SK-B52 系列为 AC 220–240V。泰国可供型号及适用电压请向泰国奇力速确认。
Product inquiry
SK-B5P系列 无碳刷AC交流电压全自动中扭力下压式电动起子系列
cONTACT
KILEWS INTELLIGENT TECHNOLOGY CO., LTD.
Address: No. 241/134, Moo 3, Bo Win, Si Racha, Chon Buri 20230, Thailand
Phone: 081-136-8391
E-mail: kilewsth@gmail.com 电话: 081-136-8391 微信: 13322901202 LINE: kilews
规格表
| 型号 | 电压 | 扭力(kgf.cm) | 扭力(Lbf.in) | 扭力(N.m) | 精度(%) | 空转速(r.p.m) | 适用螺丝直径(mm)机械牙 | 适用螺丝直径(mm)自攻牙 | 重量(g) | 长度(mm) | 适用起子头 |
| SK-B5112L | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | ±3% | 1200 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5112P | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | ±3% | 1200 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5112LF | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | ±3% | 2000 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5112PF | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | ±3% | 2000 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5117LF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | ±3% | 2000 | 1.6~3.5 | 1.6~3.0 | 470 | 245 | A、B、C、D |
| SK-B5117PF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | ±3% | 2000 | 1.6~3.5 | 1.6~3.0 | 470 | 245 | A、B、C、D |
| SK-B5122L | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | ±3% | 1200 | 2.3~4.0 | 2.3~3.5 | 470 | 245 | A、B、C、D |
| SK-B5122P | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | ±3% | 1200 | 2.3~4.0 | 2.3~3.5 | 470 | 245 | A、B、C、D |
| SK-B5212L | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | ±3% | 1200 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5212P | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | ±3% | 1200 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5212LF | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | ±3% | 2000 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5212PF | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | ±3% | 2000 | 1.6~3.0 | 1.6~2.6 | 470 | 245 | A、B、C、D |
| SK-B5217LF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | ±3% | 2000 | 1.6~3.5 | 1.6~3.0 | 470 | 245 | A、B、C、D |
| SK-B5217PF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | ±3% | 2000 | 1.6~3.5 | 1.6~3.0 | 470 | 245 | A、B、C、D |
| SK-B5222L | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | ±3% | 1200 | 2.3~4.0 | 2.3~3.5 | 470 | 245 | A、B、C、D |
| SK-B5222P | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | ±3% | 1200 | 2.3~4.0 | 2.3~3.5 | 470 | 245 | A、B、C、D |
起子头型图示表

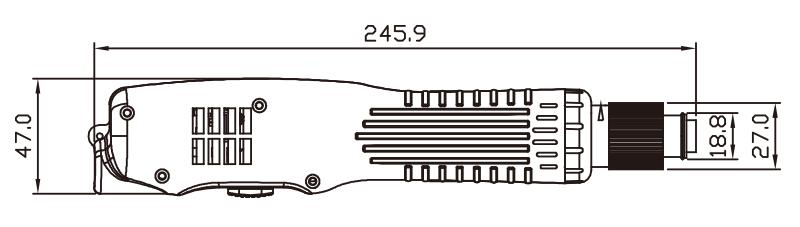

外部尺寸图
单位:mm
台湾总部列示之配件
原厂下载资料
订购或安装前，请向泰国奇力速确认确切型号、控制器、手册版本及当地供货情况。
